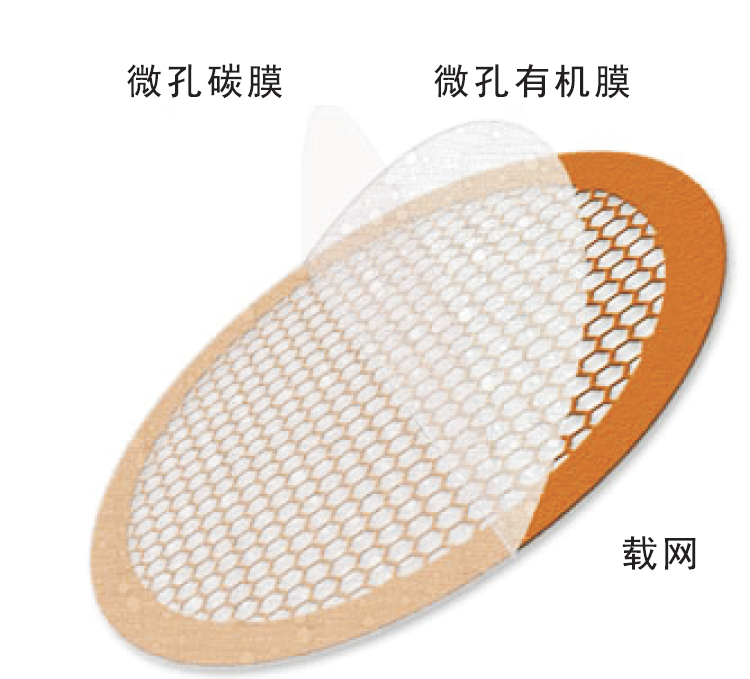

A lacey network support film. The holes in the lacey support film vary in size from less than a quarter micron to more than 10 microns making them ideal for any type of specimen. Lacey support films are extremely strong and withstand vigorous specimen preparation treatment. The specimen material is supported by the film network but lies across or protrudes into the holes of the mesh. This allows high definition imaging without the effects of underlying support material. Lacey films can be used for specimens ranging from large crystals and other particulate material to virus particles. Smaller particles, such as viruses or bacteria, tend to adhere around the inner edges of the holes, an ideal situation for high resolution microscopy. Lacey films are also ideal for selected area electron diffraction imaging. We offer four types of lacey film.

See the Support Film / Substrate Application Guide at top of page.
